Our 30 Gallon Explosion Proof Cabinet is engineered to mitigate these risks. Designed specifically for the safe storage of flammable liquids, solvents, and paints, this cabinet serves as a critical firewall between dangerous chemicals and potential ignition sources.
Whether you are managing a scientific research unit, a chemical enterprise, or a faculty of medicine, this cabinet provides the compliance and protection your facility demands.
Key Features & Benefits
1. Robust Double-Wall Construction
Built to withstand extreme conditions, this cabinet features a heavy-duty, double-wall steel structure with a 38mm insulating air space. This thermal barrier significantly reduces heat transfer, protecting internal contents from rapid temperature rise during a fire event.
2. Superior Surface Treatment

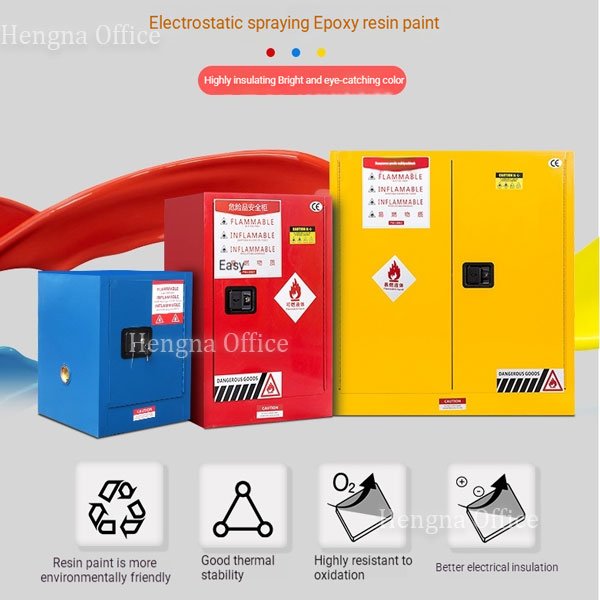

Unlike standard cabinets, our units undergo electrostatic spraying with Epoxy resin paint. This advanced coating process offers:
- High Insulation: Reduces electrical conductivity risks.
- Bright & Eye-Catching Color: Ensures immediate visibility in emergency situations.
- Oxidation Resistance: Excellent durability against rust and chemical corrosion.
- Environmental Friendliness: Resin paint is a more eco-conscious choice compared to traditional solvent-based paints.
3. Enhanced Security System
Security is paramount when handling hazardous materials. The cabinet is equipped with a double door and double lock configuration. This allows for:
- Three-Point Linkage Lock: Ensures the doors are sealed tightly to prevent fume leakage.
- Dual Management: Supports the use of an additional padlock for “Two-Person Integrity” control, restricting access to authorized personnel only.
Scientific Classification: Choosing the Right Cabinet
Safety starts with correct segregation. Our cabinets adhere to a strict color-coding system to prevent dangerous chemical reactions.
Note: This product page is for the RED cabinet. Please select the correct color based on your storage needs below:
| Color | Cabinet Type | Target Substances (Flash Point / pH) | Typical Applications |
| RED (This Model) | Flammable Liquid Storage | Flash point < 45°C Examples: Inks, paints, coatings, ethanol, acetone, dye. | Automotive shops, print shops, chemical labs using volatile solvents. |
| YELLOW | Combustible Liquid Storage | High Flash Point Liquids Examples: Alcohol, glue, vapor oil, crude oil, nitrocellulose. | Warehouses storing heavy oils or adhesives. |
| BLUE | Corrosive Storage | Weak Acids & Alkalis Examples: Hydrochloric acid, nitric acid, bleach, peroxide. | Water treatment plants, cleaning supply rooms. |
Technical Specifications
Ensure this unit fits your designated floor space.
- Capacity: 30 Gallons
- Dimensions: H1120 × W1090 × D460 mm (approx. 44″ x 43″ x 18″)
- Door Style: Manual Close, Double Doors
- Shelving: 1 Adjustable Galvanized Laminate Piece
- Material: Cold Rolled Steel with Epoxy Resin Finish
- Ventilation: Dual vents with flame arresters
- Sump: Leak-proof containment sump to capture spills
Ideal Application Scenarios
This 30-gallon safety cabinet is versatile and widely used across various sectors:
- Scientific Research Units: For the daily storage of reagents and experimental solvents.
- Medical Premises: Safe keeping of sanitizers, rubbing alcohol, and pharmaceutical chemicals.
- Chemical Companies: Interim storage for production line samples.
- Industrial Workshops: Perfect for storing spray paints and cleaning agents near the workspace.
Why Compliance Matters?
Investing in a certified explosion-proof cabinet is not just about storage; it’s about legality and life safety. Our cabinets are designed to help you meet local fire codes and safety regulations (such as OSHA and NFPA standards). By segregating and locking away flammable liquids, you:
- Protect workers from flash fires.
- Reduce the risk of chemical explosions.
- Protect your facility’s assets from destruction.
Frequently Asked Questions (FAQ)
Q: Does this cabinet come assembled? A: Yes, the cabinet ships fully assembled. You simply need to position the adjustable shelf to your desired height.
Q: Can I store acids in this red cabinet? A: No. The Red cabinet is specifically for flammable liquids. For weak acids and alkalis, please view our Blue Weak Acid/Alkali Storage Cabinet, which has specific corrosion-resistant linings.
Q: What is the advantage of the Epoxy Resin Paint? A: As highlighted in our product features, the epoxy resin paint provides better electrical insulation and high resistance to oxidation compared to standard paints, making the cabinet more durable in harsh industrial environments.
