Quick answer: The 51,840-slide histology storage cabinet is a modular cold-rolled steel archiving system that holds up to 51,840 microscope slides or about 12,000 paraffin blocks in a 515 × 480 × 1440 mm footprint. It fits hospital pathology departments, independent labs and research biobanks that need years of slide archives in minimal floor space.
Pathology laboratories generate slides every working day, and those slides stay legally referenceable for years. A department that produces 100 slides a day accumulates more than 25,000 slides in a single year. Wooden cabinets and basic metal shelves were never designed for that volume — they warp, they waste floor space, and they make retrieval a guessing game. This cabinet was engineered to solve exactly that problem.
51,840-Slide Capacity in a 515 mm Wide Footprint

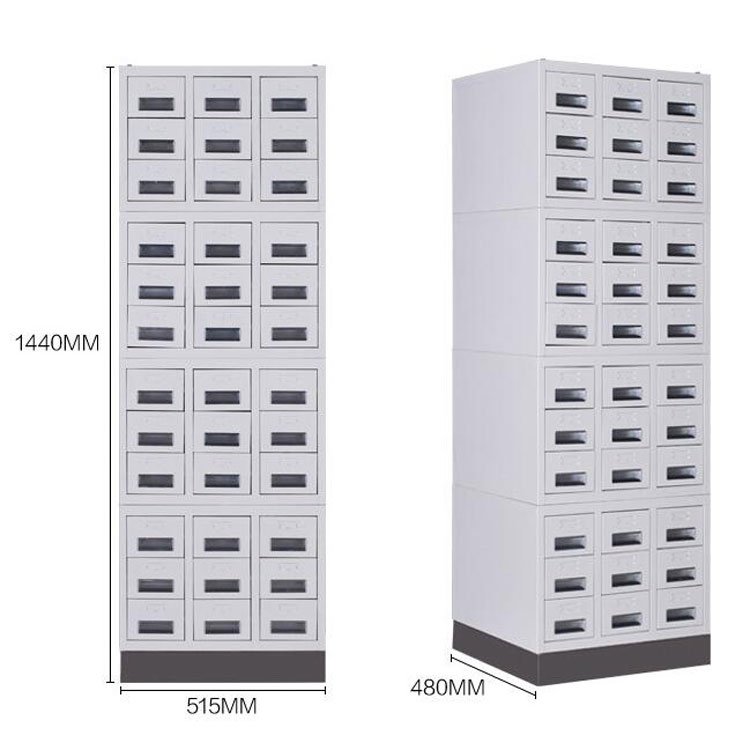

The cabinet holds up to 51,840 standard 25 × 75 mm microscope slides, or approximately 12,000 paraffin-embedded tissue blocks. External dimensions are 515 mm wide, 480 mm deep and 1440 mm high — roughly the floor space of a single office chair. A large pathology department can cover several years of archival needs with one unit, which directly reduces the number of cabinets, the floor area, and the retrieval walking distance.
Construction: Cold-Rolled Steel, Built for Daily Abuse

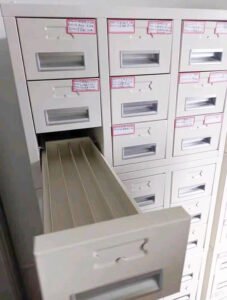

The body is made from premium cold-rolled steel with an electrostatic powder-coated finish that resists rust, moisture and corrosion. Drawers run on reinforced stainless steel triple-extension silent slides, tested for more than 50,000 open-close cycles — the equivalent of a dozen years of daily full-load use. Adjustable dividers inside each drawer let you separate slide boxes, paraffin block trays, or a mix of both.
Safety details are handled at the base and the edges: 20 mm high non-slip rubber feet keep the cabinet planted on smooth floors, and rounded cabinet edges remove the sharp corners that staff bump into every day.
Modular Architecture That Grows With Your Archive
Archives grow. A cabinet locked to a single layout becomes a problem within two years. This unit supports vertical stacking and horizontal side-by-side configuration through interlocking brackets — align, lock, and the second cabinet becomes an extension of the first. When your slide volume doubles, the storage system doubles with it instead of being replaced.
Who Uses This Cabinet
Hospital pathology departments use it for long-term archiving and fast retrieval of patient slides for diagnosis, review and consultation. Independent clinical laboratories manage high-volume samples from multiple partner facilities in one system. University and research labs rely on it for oncology, immunohistochemistry and molecular pathology biobanking. Forensic and judicial identification centers use it for secure, compliant evidence storage, and pharmaceutical and CRO labs standardize preclinical tissue archiving on the same platform.
Finish, Delivery and Setup
The standard finish is matte white (RAL 9016); custom RAL colors are available for labs that match furniture to a brand or department color scheme. Each cabinet ships fully assembled from the factory — it is ready to use out of the crate, and stacking two units only requires aligning the interlocking brackets. Packing is a fully enclosed wooden crate with pearl cotton padding and corner protectors; inspect the outer packaging before signing for delivery.
FAQ
Can slides and paraffin blocks share the same cabinet?
Yes. Adjustable partitions and optional compartment trays allow mixed storage of slides and blocks within the same drawer, so one cabinet can serve two archive types without buying a second unit.
Can the size and color be customized?
Yes. OEM service covers cabinet dimensions, internal layout and exterior color, so the unit can match both your spatial constraints and your lab’s visual standard.
Is it suitable for temperature- and humidity-controlled rooms?
Yes. The steel construction resists warping under controlled environmental conditions, which is exactly what long-term histology preservation requires.
What about warranty and after-sales?
The cabinet carries a 1-year full warranty plus lifetime technical support covering installation, maintenance and troubleshooting.
How Many Cabinets Does Your Lab Need?
Size the archive from production volume, not shelf space. A department producing 100 slides per working day generates about 25,000 slides per year on a 250-day calendar — so one 51,840-slide unit covers roughly two years of output. A lab producing 40 slides a day stretches the same unit past five years. Count the paraffin side the same way: the cabinet holds about 12,000 blocks. If your archive is already past 40,000 slides, plan two units and stack them from day one.
Installation and Stacking Notes
Each unit arrives fully assembled — no on-site build, no missing hardware bags. Place it on a level floor, align the interlocking brackets, and a second cabinet locks into a tower or a side-by-side run. Leave drawer-extension clearance in front: the triple-extension slides need full travel for a loaded drawer to open completely. Wall clearance behind the unit is minimal by design, but keep the front aisle generous because that is where staff stand with both hands full.
Slide and Block Compatibility Details

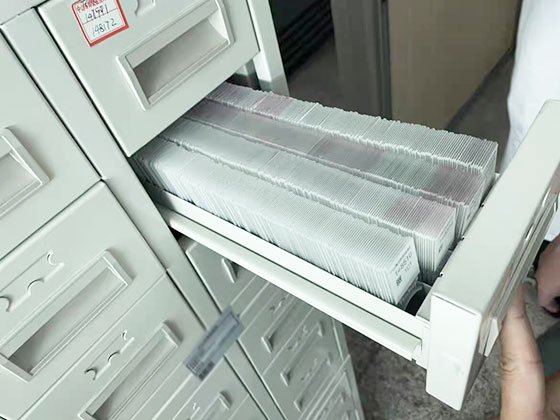

The chamber is built around standard 25 × 75 mm microscope slides, and the adjustable dividers accommodate common slide-box formats as well as paraffin block trays. When both formats share one cabinet, dividers split each drawer into a slide zone and a block zone so neither shifts into the other’s space. For labs migrating an existing archive, the divider plan can be specified to match the old cabinet’s ordering so blocks and slides move across in the same sequence they were filed — no re-sorting during the transfer.
Two practical notes from labs that run this setup: label the divider positions inside each drawer, not just the drawer face, and reserve one divider position per drawer for the boxes currently in use. Both habits keep the archive tidy while the working set rotates.
