1. Compact 12 Gallon Hazardous Material Storage Cabinet Product Overview
In laboratories, workshops, and industrial factories, the safe storage of flammable liquids is not just a recommendation—it is a mandatory compliance requirement. Our Compact 12 Gallon Hazardous Material Storage Cabinet offers a robust, fire-resistant solution designed specifically for facilities with limited floor space.
Standing at a convenient height of 900mm and width of 600mm, this yellow safety cabinet is universally recognized for storing flammable liquids (Flash point < 100°F) such as aerosol cans, inks, paints, acetone, and cleaning solvents. Its compact footprint makes it ideal for under-counter installation or placement in tight corners of automotive shops and printing rooms, ensuring dangerous chemicals are kept organized and isolated from ignition sources.
2. Engineered for Fire Resistance and Containment
Safety is built into every layer of this cabinet. Unlike standard storage lockers, this unit is engineered to delay the internal temperature rise in the event of a fire, buying critical time for evacuation and firefighting.
- Double-Wall Steel Structure: The cabinet body is constructed from sturdy 1.0mm – 1.2mm thick cold-rolled steel plates with a 38mm insulating air space between the layers. This design acts as a thermal barrier.
- High-Visibility Warning: Finished in a high-gloss, chemical-resistant yellow powder coating, the cabinet is immediately identifiable as a “Flammable” storage zone. The front door prominently features multilingual warning labels: “FLAMMABLE – KEEP FIRE AWAY”.
- Leak Containment: The bottom of the cabinet features a 50mm (2-inch) leak-proof sump (not visually explicit in crop but industry standard for this type). If a container spills or leaks inside, the liquid is contained within the cabinet base, preventing it from spreading across your facility floor and creating a slip or fire hazard.
3. High-Security Locking Mechanism
Security is paramount when storing hazardous substances. Unauthorized access can lead to accidents or misuse. This model is equipped with a premium locking system that sets it apart from budget alternatives.

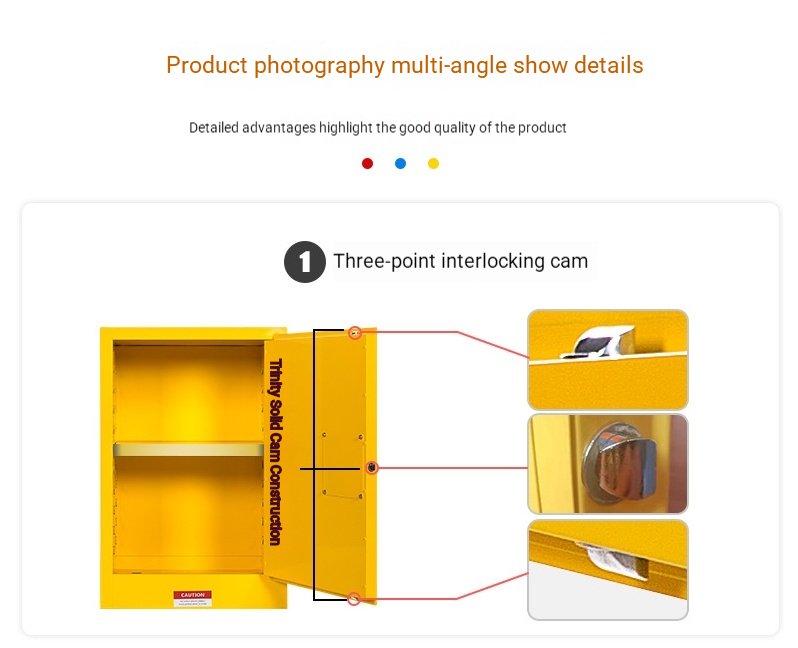

- 3-Point Bullet Latching System: As shown in the detailed engineering view, the door utilizes a three-point linkage lock tongue. When the handle is turned, solid steel latches engage at the top, bottom, and side of the door frame simultaneously. This ensures:
- A Positive Seal: The door is pulled tight against the frame to block fire and fumes.
- Anti-Pry Security: It is nearly impossible to force the door open without the key.
- Durability: The solid metal latch construction resists wear over years of daily use.
- Dual-Lock Configuration: The unit supports a “Double Lock” setup. This typically allows for dual-control management (e.g., a padlock + built-in key), adding an extra layer of administrative security for highly volatile or expensive chemicals.
4. Compact 12 Gallon Hazardous Material Storage Cabinet Technical Specifications
For procurement managers and safety officers, here are the precise dimensions and parameters required for facility planning.
| Parameter | Specification Detail |
| Product Model | 12 Gallon Flammable Liquid Safety Cabinet |
| External Dimensions | H900mm x W600mm x D460mm (approx. 35.4″ x 23.6″ x 18.1″) |
| Material | 18-Gauge Double-Wall Cold Rolled Steel |
| Color | Safety Yellow (Standard for Flammables) |
| Door Configuration | Single Manual Door (180° opening) |
| Shelving | 1 Adjustable Galvanized Steel Shelf |
| Lock Type | 3-Point Linkage Latch with Recessed Paddle Handle |
| Venting | Dual flame-arrestor vents (located on sides) |
| Grounding | Built-in static grounding connector |
5. Applications and Usage Scenarios
The 12-Gallon size is a “Goldilocks” solution—small enough to fit anywhere, but spacious enough for essential supplies.
- Automotive Repair Shops: Store aerosol spray paints, brake cleaners, and thinners near the workbench without violating fire codes.
- University & School Laboratories: Perfect for under-fume-hood storage of small reagent bottles and ethanol.
- Printing & Art Studios: Organize inks, brush cleaners, and linseed oil rags safely.
- Factory Assembly Lines: Keep daily-use solvents (isopropyl alcohol, adhesives) at the point of use, reducing the time spent walking to a central chemical warehouse.
6. Why Upgrade to Our “Industrial Grade” Cabinet?
A. Adjustable Galvanized Shelving The interior includes one sturdy shelf. It is adjustable, allowing you to customize the height to fit different container sizes—from small 500ml bottles to larger 5-liter jerry cans. The shelf is galvanized to resist corrosion from chemical drips.
B. Static Grounding Protection Static electricity is a silent killer when transferring flammable liquids. Our cabinets come with a built-in grounding screw (located on the side panel), allowing you to earth the cabinet and prevent static sparks from igniting vapors.
C. Robust Packaging for Shipping We understand that dents compromise the structural integrity of safety cabinets. We ship our 12-gallon units with reinforced corner protection and heavy-duty palletizing to ensure they arrive at your facility in pristine condition.
7. Frequently Asked Questions (FAQ)
Q: Does this cabinet come assembled? A: Yes, the 12 Gallon Safety Cabinet ships fully assembled. You only need to position the adjustable shelf to your desired height and level the feet.
Q: What do the colors mean? A: According to industry standards:
- Yellow: For Flammable Liquids (Paints, Petrol, Solvents).
- Red: For Combustible Liquids (Diesel, Oils).
- Blue: For Corrosives (Acids). This listing is for the Yellow (Flammable) version.
Q: Is the lock reliable? A: Absolutely. We use a solid steel 3-point latch mechanism. It is far superior to simple cam locks found on cheaper cabinets, offering better fire sealing and theft protection.
Q: Can I remove the shelf? A: Yes, the single shelf is removable and adjustable, allowing you to store taller containers if necessary.
8. Ensure Your Facility is Compliant Today
Don’t wait for a safety inspection or an accident to upgrade your storage. The 12 Gallon Hazardous Material Storage Cabinet is an affordable investment in safety, compliance, and peace of mind.
