Industrial Yellow Single Gas Cylinder Storage Cabinet | Explosion-Proof Steel Locker for Workshops

Ensure workplace safety and regulatory compliance with our Industrial Yellow Single Gas Cylinder Storage Cabinet—an explosion-proof steel locker engineered for workshops, labs, and production environments. Designed to meet OSHA and NFPA standards, this cabinet delivers robust fire and explosion protection, intelligent gas leak detection, and secure cylinder management in one compact, high-visibility unit.

Why Choose Our Explosion-Proof Gas Cylinder Cabinet?

• Regulatory Compliance: Built to satisfy OSHA 1910 and NFPA 30 requirements for compressed gas storage, helping you avoid fines and ensure a safe workplace
• Fire & Explosion Protection: Double-walled 1.2mm steel construction with 38mm ceramic fiber insulation withstands external fire up to 900°C for 30 minutes
• Intelligent Gas Monitoring: Patented sensor system detects flammable gases (methane, acetylene, hydrogen) and toxic gases (carbon monoxide) with dual audio/visual alarms
• Secure Cylinder Management: Ω-type steel base with adjustable chains and anti-tip brackets keeps cylinders stable
• High-Visibility Safety Design: Bright industrial yellow (RAL 1023) aligns with international safety color codes
• Flexible Ventilation: Dual closable 100mm vents support natural or forced ventilation to prevent hazardous vapor accumulation

Industrial Yellow Single Gas Cylinder Storage Cabinet Technical Specifications

Construction & Materials

Component	Specification	Safety Benefit
Body Material	1.2mm cold-rolled steel, 1.0mm galvanized steel interior	Durable, corrosion-resistant construction
Fire Insulation	38mm ceramic fiber	30-minute protection at 900°C external temperature
Coating	Epoxy powder coating, RAL 1023 yellow	High visibility, chemical resistance
Door System	Three-point locking, 180° opening	Secure access with maximum convenience

Safety System Parameters

Feature	Specification	Response Time
Gas Detection	Catalytic/electrochemical sensors	≤20 seconds
Alarm System	≥85dB buzzer, 360° red strobe	Instant activation
Detection Range	0-100% LEL (flammable), 0-1000ppm (toxic)	Real-time monitoring
Power Consumption	<5W standby, <50W alarm	Energy efficient

Physical Dimensions

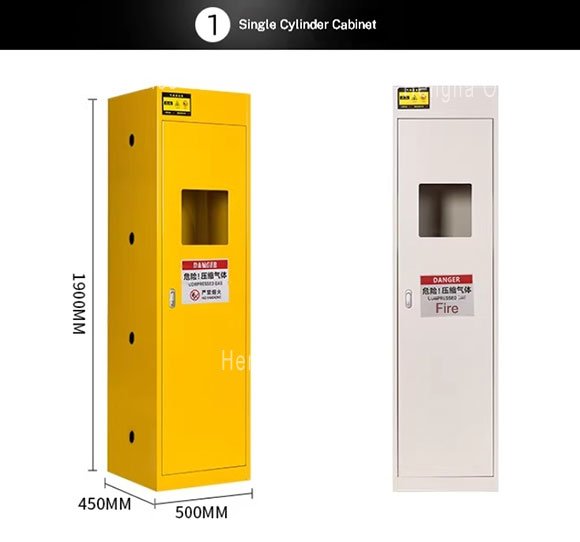

• External: 1900(H) × 500(W) × 450(D) mm
• Internal: 1850(H) × 480(W) × 430(D) mm
• Weight: 85kg (net), 200kg (max load)
• Cylinder Capacity: Single cylinder up to 300mm dia × 1800mm height

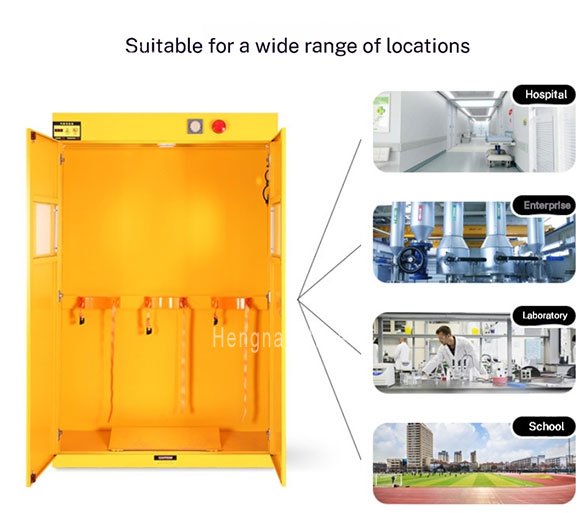

Industrial Yellow Single Gas Cylinder Storage Cabinet Key Applications & Industry Solutions

Manufacturing & Industrial Workshops

Perfect for welding shops, metal fabrication facilities, and automotive plants storing oxygen, acetylene, argon, and other industrial gases. Our explosion-proof cabinet helps you maintain compliance with OSHA 1910.253 and local safety regulations while preventing workplace accidents.

Laboratory & Research Facilities

Ideal for universities, R&D labs, and testing centers handling specialty gases including hydrogen, nitrogen, and helium. The compact footprint and intelligent alarm system protect personnel and sensitive experiments in space-constrained environments.

Medical & Healthcare Settings

Secure storage for backup oxygen cylinders in hospitals and clinics. The high-visibility yellow design and rapid alarm response ensure quick identification and response in critical healthcare situations.

Energy & Chemical Plants

Suitable for petrochemical facilities, natural gas processing plants, and renewable energy sites requiring explosion-proof storage solutions. The corrosion-resistant coating and robust construction withstand harsh industrial environments.

Installation & Maintenance Guidelines

Installation Requirements

• Location: Well-ventilated area away from heat sources and ignition points
• Floor Load: Minimum 300kg/m² capacity on solid, level surface
• Clearance: 800mm minimum space for door opening
• Electrical: Professional installation required for 220VAC/50Hz or 24VDC power
• Grounding: Must be properly grounded with ≤4Ω resistance

Ventilation Options

1. Natural Ventilation: Install ≥100mm from wall with rear vent unobstructed
2. Forced Ventilation: Connect ducting for ≥150m³/h airflow using built-in vent interfaces

Maintenance Schedule

Frequency	Task	Purpose
Weekly	Alarm self-test	Verify system functionality
Monthly	Sensor filter cleaning	Maintain detection accuracy
Quarterly	Full system check	Comprehensive safety verification
Semi-annually	Sensor calibration	Ensure reliable performance

Frequently Asked Questions (FAQ)

Q1: What types of gas cylinders can be stored in this cabinet?
A: Compatible with standard industrial gas cylinders including oxygen, acetylene, argon, nitrogen, CO2, hydrogen (max 300mm dia × 1800mm height). For corrosive gases, consult our technical team for specialized models.

Q2: How often does the alarm system require calibration?
A: Sensor calibration is recommended every 6 months to maintain detection accuracy and prevent false alarms.

Q3: What is the fire protection capability?
A: The 38mm ceramic fiber insulation provides 30 minutes of protection against external 900°C fire, limiting internal temperature rise to ≤150°C.

Q4: What are the ventilation requirements?
A: Maintain ≥100mm clearance from walls for natural ventilation, or install forced ventilation with ≥150m³/h airflow. Both side vents are adjustable for optimal airflow management.

Q5: Can this cabinet be installed outdoors?
A: Standard models are designed for indoor use. For outdoor installation, choose our weatherproof version with reinforced coating and rain canopy, elevated ≥150mm above ground level.

Q6: Are larger capacity models available?
A: Yes, we offer double (2-cylinder), quad (4-cylinder), and custom multi-cylinder configurations to meet your specific storage needs.

Q7: What warranty coverage is provided?
A: Includes 1-year warranty covering manufacturing defects. Excludes misuse, unauthorized modifications, natural disasters, lack of maintenance, and damage beyond the 10-year design life.
