In places where safety is very important, like auto repair shops, industrial painting centers, and chemical labs, it’s not just a “nice-to-have”—it’s the most important thing. When volatile substances are stored incorrectly, fires can happen in the blink of an eye. They don’t wait for a good time.
Introducing the yellow safety cabinet with a capacity of 90 gallons (341 liters). This cabinet is more than just a storage box; it’s a fortified vault that protects your people, your property, and your peace of mind. It was built to last and meet all OSHA requirements.
Heavy-Duty 90 Gallon Yellow Safety Cabinet Table of Quick Specifications
Feature
Specification
Capacity
90 Gallons / 341 Liters
Material
18-Gauge Double-Walled Galvanized Steel
External Dimensions
H1650 × W1090 × D860 mm
Internal Dimensions
H1550 × W780 × D780 mm
Sump Depth
2-Inch (50.8 mm) Leak-Proof Base
Shelving
Adjustable Galvanized Steel (200kg/layer)
Certification
OSHA 1910.106 & NFPA Code 30 Compliant
Locking Mechanism
3-Point Self-Latching with Key & Padlock Hasp
Why Storage Safety is Not Up for Discussion
Every year, thousands of industrial fires are caused by people not handling Class I, II, and III flammable liquids correctly. Gasoline, thinners, alcohol, and acetone are very volatile. A single static spark can set off their vapors. Our 90-gallon cabinet is made to keep these fuels away from things that could start a fire. This slows down the spread of fire and gives people time to get out of the building.
Important Performance Features
Made of high-quality 18-gauge steel
Cheap cabinets are made of thin metals that bend when they get hot. Our cabinet is made of galvanized steel that is very strong and has two walls. The 1.5-inch (38mm) air space between the walls acts as an insulator, making it much harder for heat to get into the cabinet during an outside fire.
The 2-Inch Leak-Proof Sump: Your Last Line of Defense
In a chemical sense, spills are not only messy, but also dangerous. There is a 2-inch sump at the bottom of our cabinet that is liquid-tight.
Containment: The sump catches the liquid if a container leaks or gets a hole in it, keeping it from spilling onto the workshop floor.
Safety: By keeping the spill inside the cabinet, you stop the liquid from getting to places where it could catch fire or make the floor slippery.

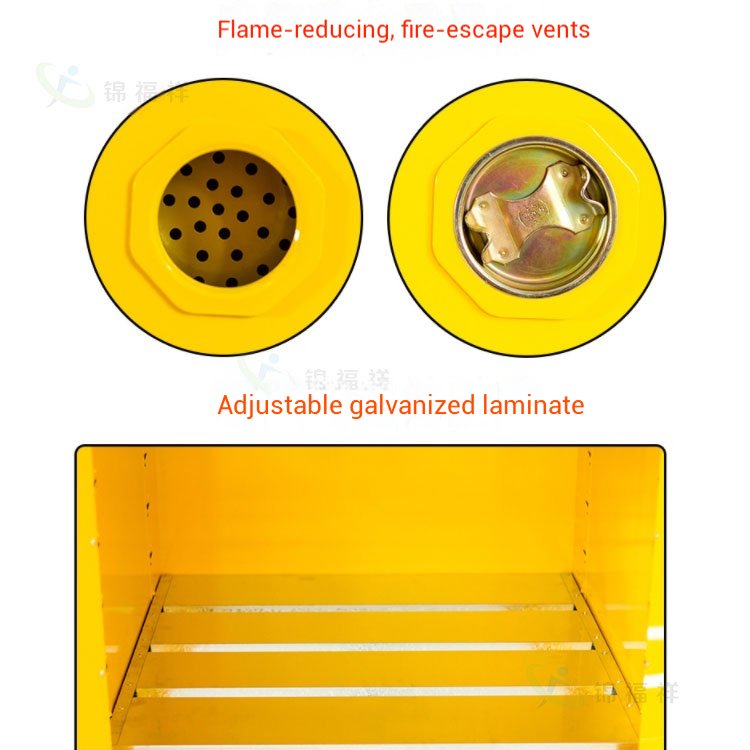

Active Fire Mitigation: Vents that stop flames
Vapor buildup is a deadly threat. There are two fire escape vents on the sides of this cabinet that help keep flames down.
Managing Pressure: These vents let the cabinet “breathe,” which keeps explosive vapors from building up.
Flashback Protection: If there is a fire outside, the built-in flame arrestors keep flames from getting inside the cabinet, keeping your chemicals from becoming fuel for the fire.

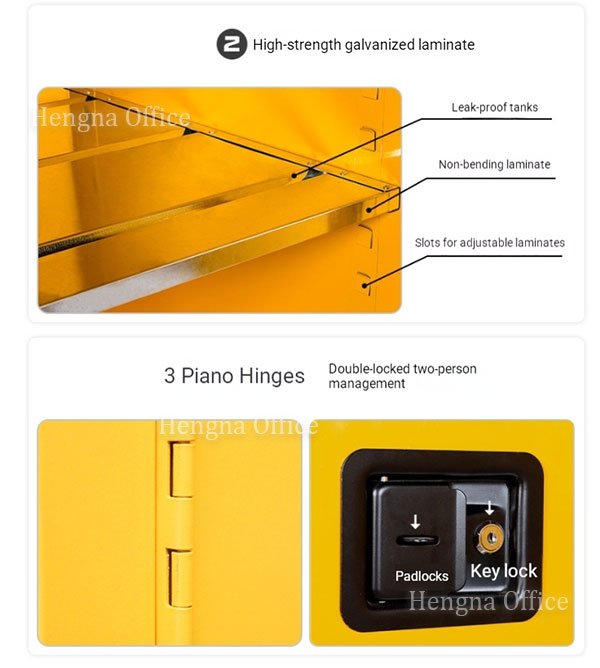

Adjustable shelving with a lot of space
Strength and efficiency go hand in hand. We know that industrial containers can be any shape or size.
You can change the layout: The galvanized steel shelves can be moved in small steps to fit 5-gallon buckets, small spray cans, or big solvent jugs.
Heavy Loading: Each shelf is built to hold up to 200 kg, so even your heaviest chemical containers won’t make the structure bend or break.
Heavy-Duty 90 Gallon Yellow Safety Cabinet Lock It Down for Security and Compliance
The “Two-Person” Management Plan
Security isn’t just about stopping theft; it’s also about letting people in. Our Dual-Lock System (Key Lock + Padlock Hasp) works with strict safety rules.
Permission Control: You can make sure that only trained people can get to high-risk materials like gasoline or aromatic thinners by using two different keys or a supervisor’s padlock.
Visible Deterrence: The 3-point self-latching system makes sure that the door is always locked when you close it, even if you’re in a hurry.
Piano Hinges with Three Points
Heavy doors can break standard hinges, and extreme heat can warp them. We use full-length piano hinges that give us:
A smooth, 180-degree door opening makes loading easy.
Consistent alignment is needed to make sure the seal is vapor-tight.
More durable for use in busy 4S shops or factories that run a lot of work.
Target Industries & Storage Compatibility
This cabinet is the “Safety Anchor” for a variety of high-intensity sectors:
Automotive Repair & 4S Centers: Store bulk quantities of brake cleaners, lubricants, and fuel additives.
Industrial Spray Painting: Safely house primers, topcoats, and highly flammable thinners.
Chemical & Pharmaceutical Labs: Organize volatile reagents and cleaning alcohols (Ethanol, Isopropyl).
Construction & Logistics: Centralize the storage of diesel and gasoline for equipment maintenance.
Recommended Liquid Storage:
Pro Tip: Never mix incompatible chemicals. This cabinet is ideal for:
Class I Flammables: Gasoline, Acetone, Alcohol.
Class II/III Combustibles: Diesel, Paint, Kerosene, Lubricants.
Questions that are often asked (FAQ)
Q: Is this cabinet already put together when it gets here?
A: Yes. The cabinet comes fully assembled to make sure it is as strong and safe as possible. You just need to put the shelves in the right place and make sure the unit is grounded.
Q: Is it really in line with OSHA?
A: Yes, for sure. This cabinet was made to meet the standards set by OSHA and NFPA. This cabinet can help you pass safety inspections and might even lower your facility’s insurance costs.
Q: Is it possible to vent this cabinet to the outside?
A: Yes. The cabinet comes with sealed bungs, but if your local fire marshal needs outside ventilation, you can take them off and put on regular venting pipes.
Q: What happens if a fire breaks out outside the cabinet?
A: The double-wall design and flame arrestors are meant to keep the temperature inside low enough to keep the liquids from reaching their auto-ignition point for a long time, giving firefighters time to put out the fire.
It’s not safe to think that “good enough” is good enough when it comes to storing chemicals. Buying our Heavy-Duty 90 Gallon Yellow Safety Cabinet is a good way to protect your business’s future. You’re not just buying a cabinet; you’re buying a safety net that works all the time to stop disasters before they happen.
