Safety is not an option in high-stakes labs; it is a must. The White Laboratory Gas Cylinder Safety Cabinet is made just for research labs where space is tight, rules must be followed, and gas safety is a top priority. This elegant white type fits in perfectly with the look of cleanrooms and academic labs, unlike industrial yellow cabinets made for workshops. It also offers the same high level of protection against fire, explosions, and gas leaks. This ventilated single-bottle cabinet keeps your compressed gases safe, compliant, and easy to get to, whether you’re storing hydrogen for fuel cell studies or nitrogen for cryogenic uses.
Pure White (RAL 9016) – ideal for lab environments
Material
1.2 mm cold-rolled steel (outer), 1.0 mm galvanized steel (inner)
Fire Resistance
Withstands 900°C external fire for 30 minutes
Ventilation
Dual 100mm closable vents with optional ducting
Power Options
220VAC/50Hz or 24VDC

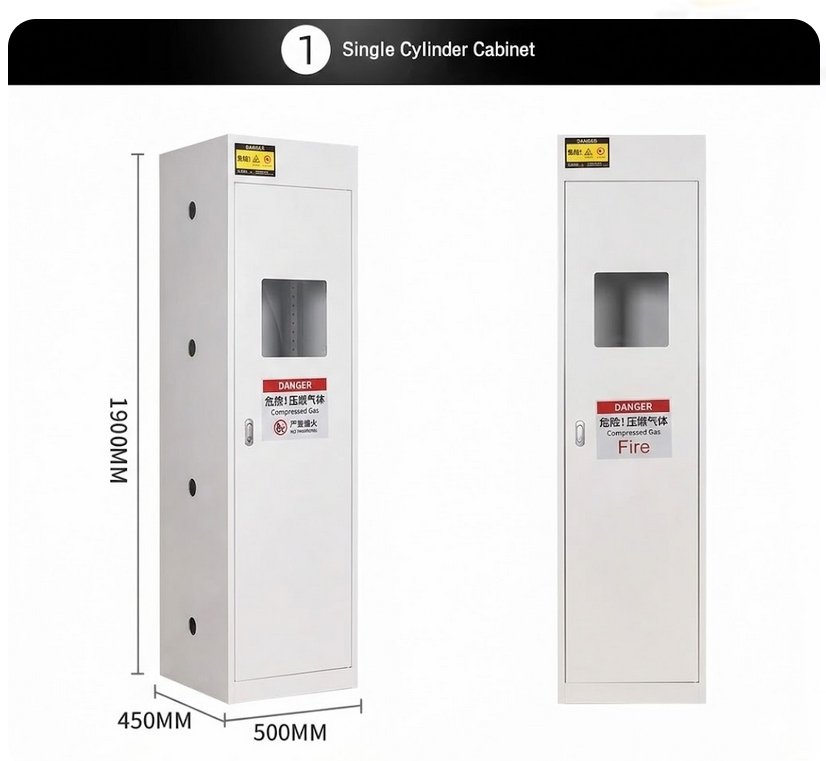

This compact footprint minimizes spatial impact—perfect for crowded bench areas—while supporting standard lab gas cylinders including oxygen, nitrogen, argon, hydrogen, helium, and CO₂.
Ideal Applications: Where This Cabinet Excels
The White Laboratory Gas Cylinder Safety Cabinet is designed for environments where both safety and professionalism are paramount:
University and academic research laboratories: Maintain specialty gases utilized in spectroscopy, chromatography, or ensuring the safety of materials.
Pharmaceutical R&D Facilities: Ensure that drug development processes requiring inert or reactive gases adhere to established regulations.
Biotech and life science laboratories ought to maintain backup bottles of oxygen or nitrogen in proximity to incubators or analytical instruments.
Quality Control and Testing Centers: Ensure that GC-MS, ICP, or environmental testing equipment consistently has a reliable supply of gas.
A white finish in cleanrooms and controlled environments reduces visual clutter and adheres to sterile design principles.
This cabinet’s understated color and streamlined design give it the appearance of a professional laboratory, setting it apart from industrial models. Additionally, it does not compromise on safety.
Core Safety Technologies: Engineered for Reliability
1. Fire-Resistant Construction
38mm ceramic fiber insulation maintains internal temperature below 150°C during a 30-minute, 900°C fire exposure.
Fire-expanding door seals automatically swell under heat to block smoke and flame ingress.

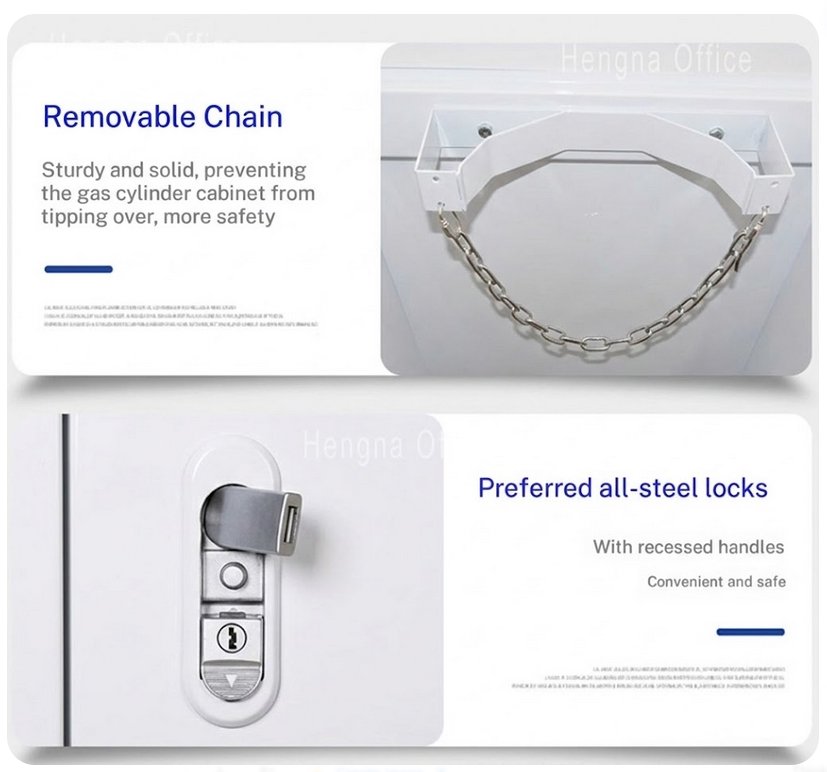

Anti-explosion hinges and 180° wide-opening doors with triple-point locking ensure safe access and structural integrity.
Anti-tip bracket system provides multi-point stability.
Height-adjustable loading pedal simplifies cylinder insertion—even for users with mobility constraints.
4. Optimized Ventilation Design
Two side-mounted 100mm ventilation ports (with caps) allow natural airflow or connection to lab exhaust systems (recommended airflow: ≥150 m³/h).
Ensures rapid dilution of any minor leaks, maintaining safe ambient conditions.
Daily & Preventive Maintenance Guide
To ensure long-term performance and compliance, follow this simple maintenance schedule:
✅ Weekly:
Test alarm self-check function.
Verify door locks and hinges operate smoothly.
✅ Monthly:
Clean sensor dust filters with dry air or soft brush.
Inspect ventilation ports for blockages.
✅ Every 6 Months:
Perform full calibration of gas sensors (required for accuracy).
Check grounding continuity (resistance ≤4Ω).
✅ Annually:
Conduct full system diagnostic (alarm, linkage, structural integrity).
Reapply anti-corrosion coating if used in humid environments.
💡 Tip: Always keep the cabinet grounded using the included anti-static clamp. Never modify internal components—doing so voids warranty.
Frequently Asked Questions (FAQ)
Q1: Can this cabinet store corrosive gases like chlorine or ammonia? A: No. This model is designed for non-corrosive industrial and lab gases (O₂, N₂, H₂, Ar, etc.). For toxic/corrosive gases, consult our chemical-resistant series.
Q2: Is outdoor installation possible? A: Not recommended. The standard white finish lacks UV/weather resistance. For outdoor use, select our IP54-rated outdoor variant with canopy.
Q3: Does it meet international lab safety standards? A: Yes. It complies with OSHA 1910.101, NFPA 55, and ISO 10218 guidelines for gas storage in laboratories.
Q4: How many cylinders can it hold? A: One standard gas cylinder (max 1800 mm tall, 300 mm diameter). Multi-bottle versions (2, 4, or custom) are available.
Q5: What’s the warranty period? A: 1-year limited warranty covering manufacturing defects. Exclusions include improper installation, lack of maintenance, or physical damage.
Q6: Can I connect it to my lab’s central exhaust system? A: Absolutely. The dual 100mm ports are compatible with standard PVC or metal ducting (adapters available).
Elevate Lab Safety Without Sacrificing Aesthetics
The White Laboratory Gas Cylinder Safety Cabinet isn’t just storage—it’s a statement of your lab’s commitment to safety, compliance, and professionalism. Backed by intelligent monitoring, fire-resistant engineering, and ergonomic design, it’s the trusted choice for institutions that refuse to compromise.
Ready to secure your gas supply? Contact our lab safety specialists for a free site assessment or request a demo unit today.
